The ethmoid is an irregular, air filled bone located in the middle of the face between the eyes. It’s a complex looking bone with many intricate features. So why would a bone in the skull evolve such a complex shape?

The ethmoid bone can be considered in four main parts, all of which we can nicely appreciate in this first anterior view. There are two lateral masses, one on each side, an inferior projection along the midline called the perpendicular plate, and a super projection called the crista galli

ethmoid bone

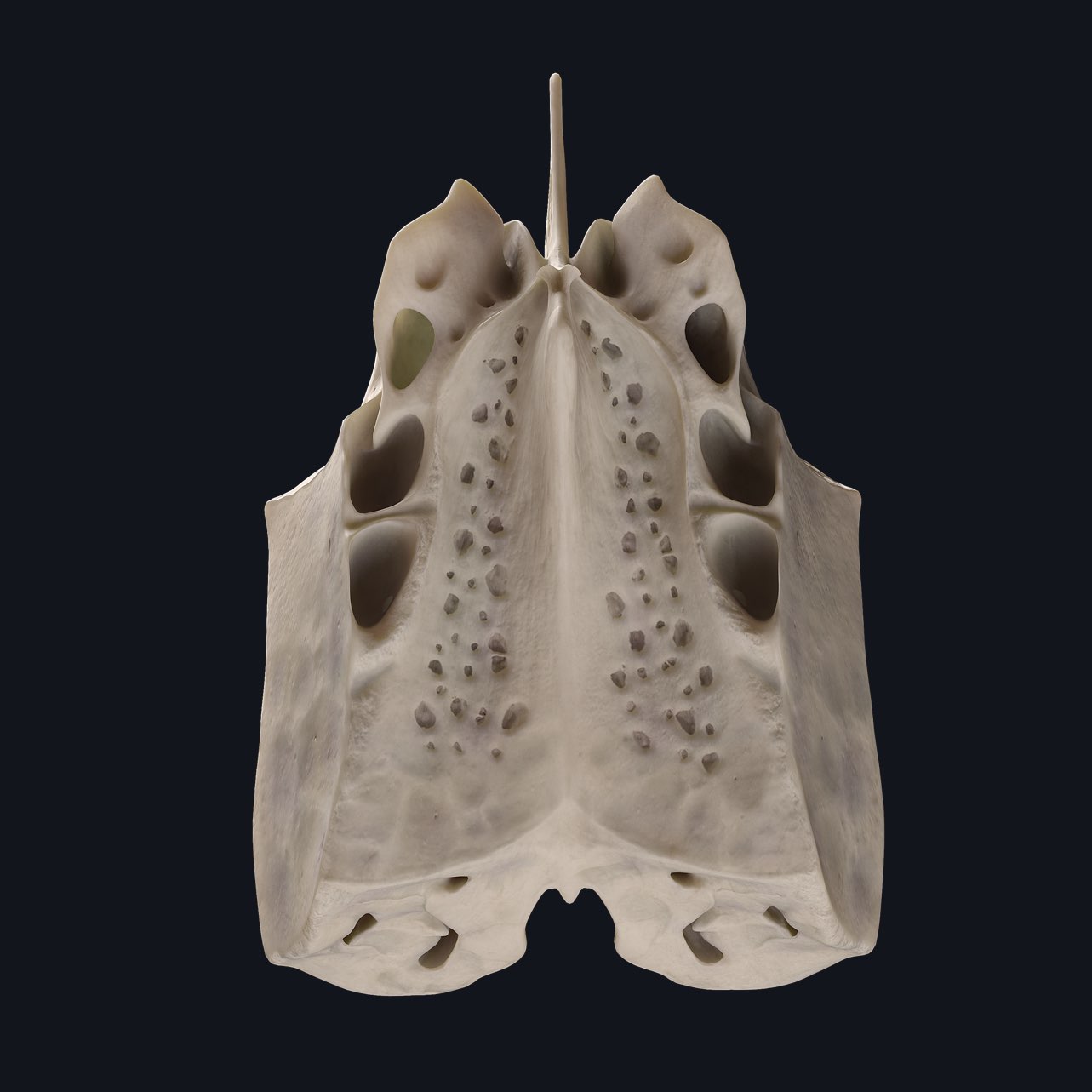

Posterior view of the ethmoid bone, part of our major Head & Neck update

There are two lateral masses, one on either side of the midline. They enclose a labyrinth of air cells which make up one of the four pairs of paranasal sinuses. The lateral wall of the lateral mass contributes to the medial wall of the orbit. The medial wall of the lateral mass makes up the superior part of the lateral wall of the nasal cavity. The superior and middle conchae are features of the lateral masses.

The perpendicular plate projects inferiorly, along the midline, to divide the nasal cavity into left and right sides. Posteriorly, it meets the body of the sphenoid, and inferiorly the vomer. It is commonly confused with the vomer, however the posterior relationship with the sphenoid distinguishes the two.

ethmoid bone

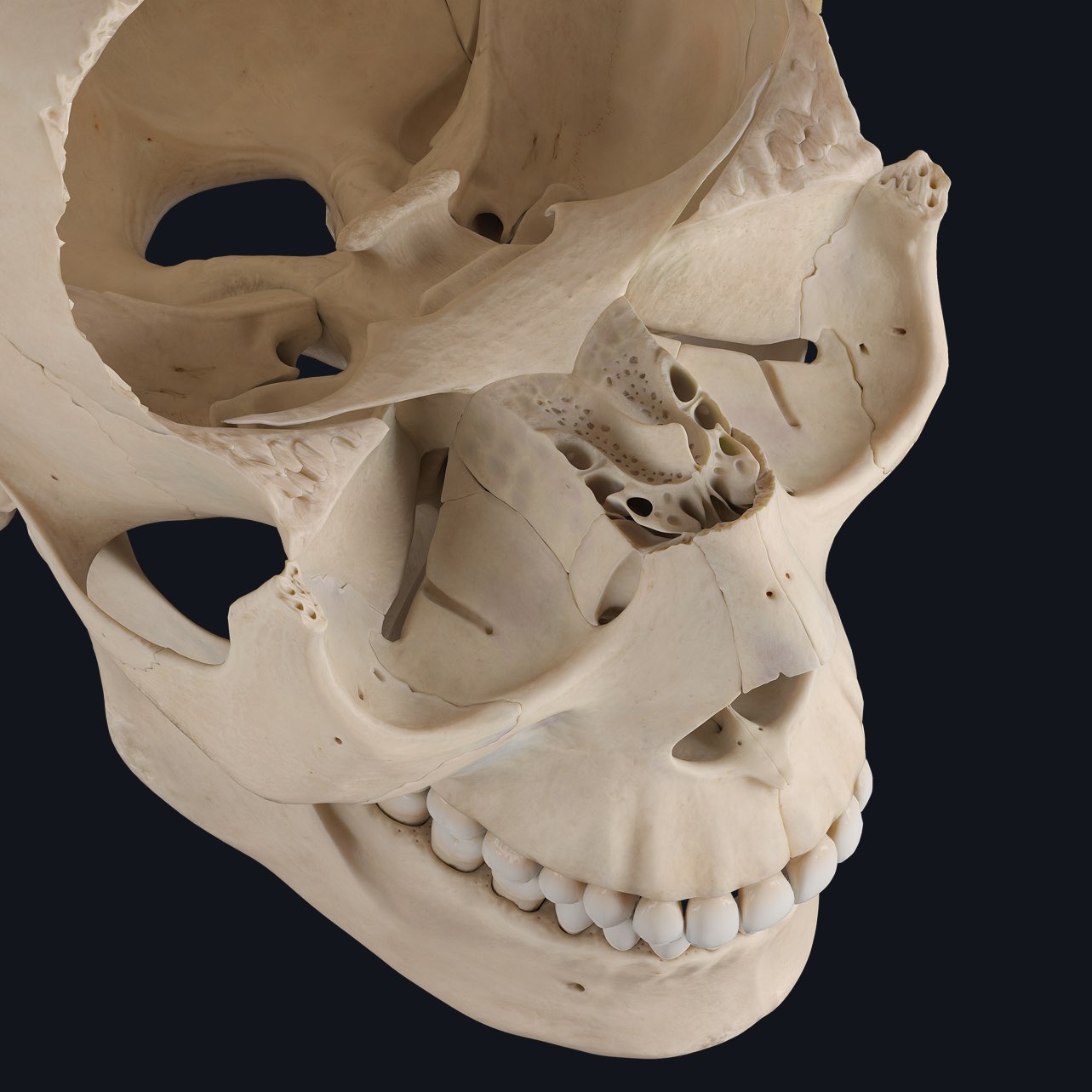

Explore the cavities and sinuses of the skull in our upcoming Head & Neck release

There is a similar midline projection superiorly, the crista galli. This is a bony anchor for the falx cerebri which divides the two cerebral hemispheres. The superior surface of the ethmoid has some other remarkable characteristics. Lying lateral to the crista galli are the cribriform plates. This is the only part of the bone that contributes to the neurocranium and it is a bed for the olfactory bulbs. The small holes in the bone allow for downward projections of the olfactory nerve into the nasal cavity below. The frontal bone is firmly attached to the anterolateral aspects protecting these anterior structures.

The ethmoidal sinuses are sometimes implicated in sinusitis, along with the other paranasal sinuses. Keep an eye out for more information on sinusitis coming your way soon!

The ethmoid bone is just one of many complex bones that have been painstakingly remodelled for our upcoming Head & Neck model update. Coming soon to Complete Anatomy.
